Extreme sensitivity down to 0.15 oz (4g) per year enables detection of even the smallest leaks in any HVAC/R system using standard refrigerants.

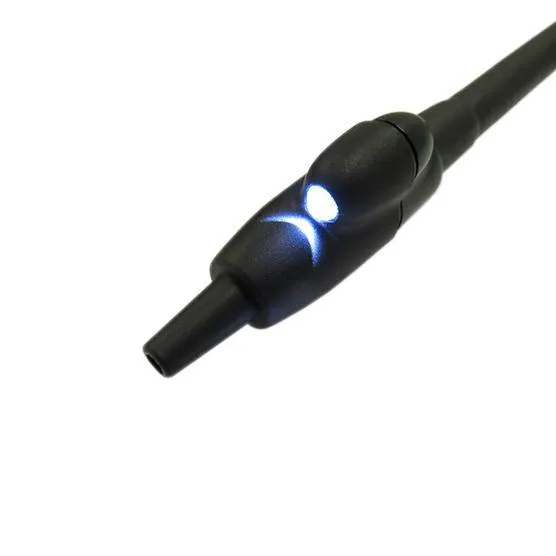

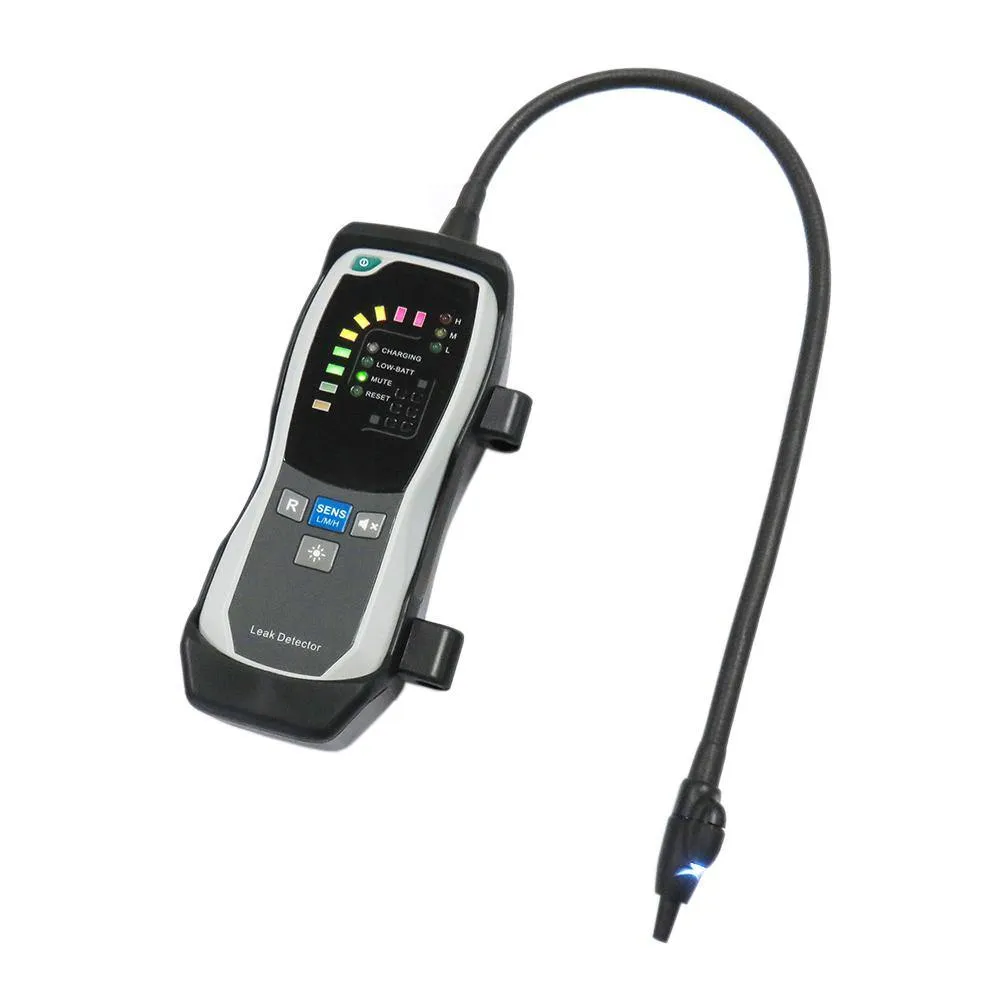

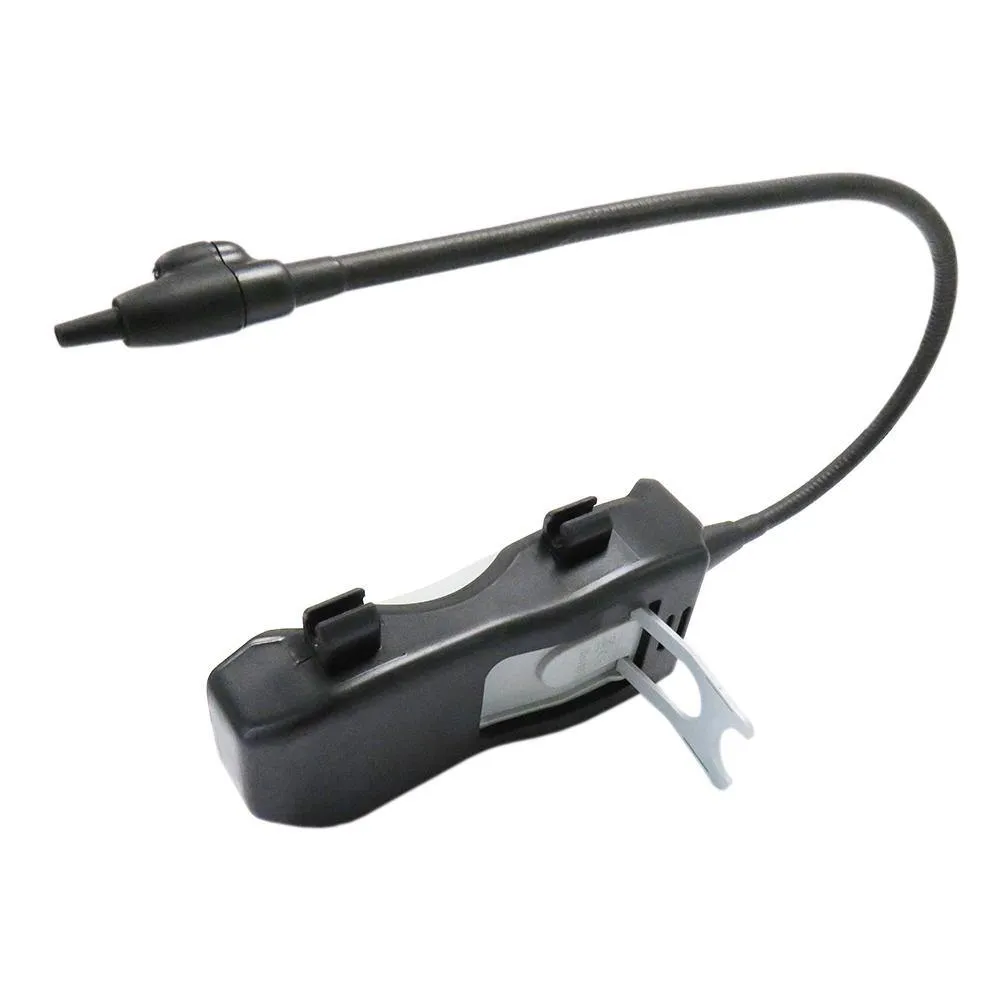

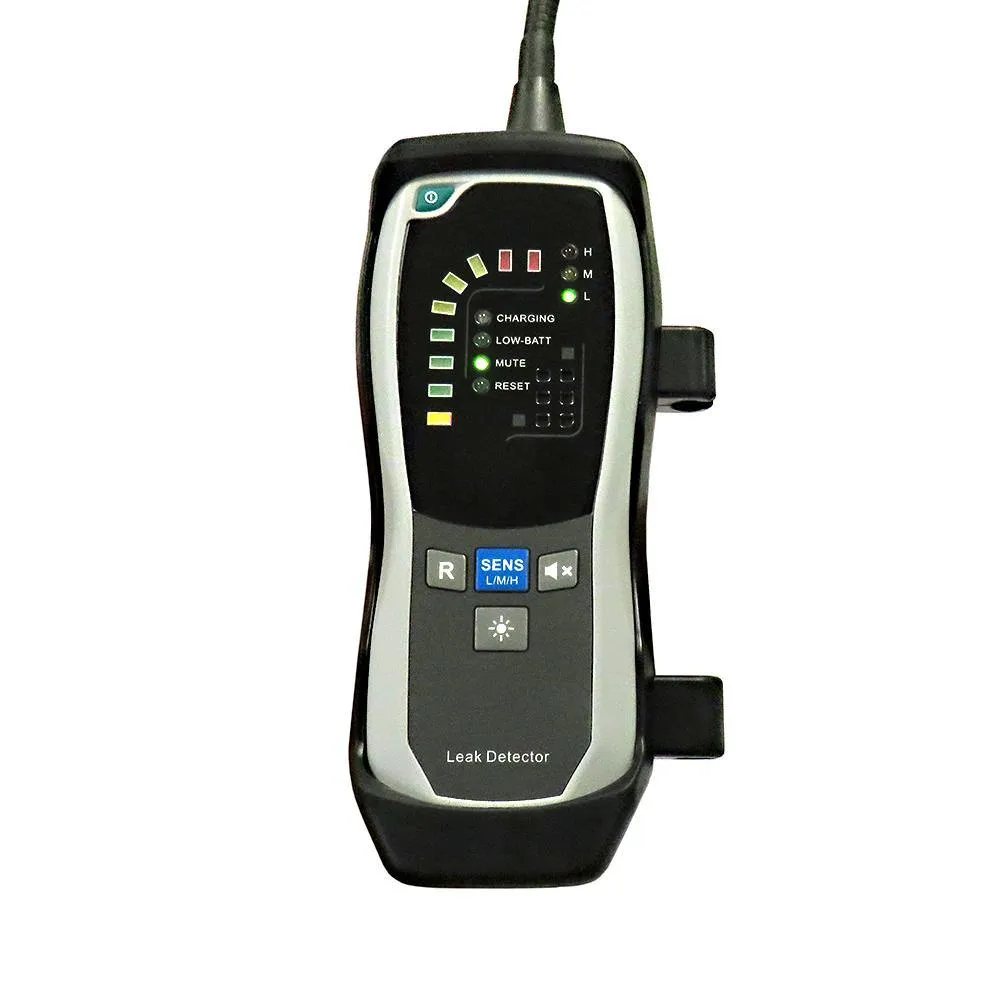

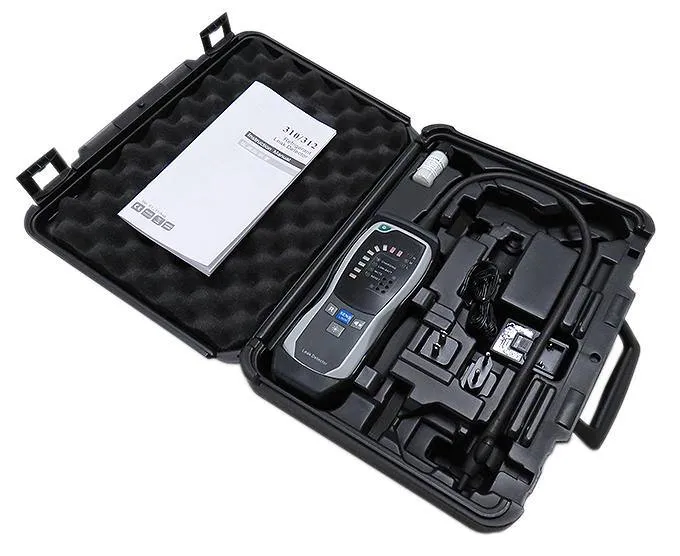

The rugged flexible probe has an LED light tip for illumination and the meter indicates low battery or sensor failure. Multi-colored LED lights indicate the level of leaks detected. Also features a mute function, 3 adjustable sensitivity levels and automatic adjustment and reset to background. Comes in a protective carrying case complete with power cable, folding tripod back, leak-test bottle, instructions and a rechargeable battery.
Weight: 16 oz (453g)
Dimensions: 7 ¼: x 2 ¾” x 1 ½” (184 x 70 x 40mm)
Specifications
| Model Name: | Refrigerant Leak Detector #900026 |
| Refrigerants | R-22, R-134a, R-404a, R-410a, all CFCs, HCFCs and HFCs |
| Sensitivity Levels | High 4g/year (0.15 oz./year) Medium 7g/year (0.25 oz./year) Low 14g/year (0.50 oz./year) (Compatibility with SAE J2791) |
| Response Time | Less than 0.5 seconds |
| Warm Up Time | 45 seconds |
| Battery | DC 3.7V, 800mAh rechargeable battery. Approximately 2.5 hours continuous use when fully charged. |
| Charging Time | 3 hours in all @ 400mA |
